Low blasting pressure in a sandblasting machine can be a real pain in the neck. As a sandblasting machine supplier, I've seen this issue crop up time and time again with our customers. Today, I'm gonna break down the possible causes and share some troubleshooting steps to help you get your machine back up and running at full steam.
Possible Causes of Low Blasting Pressure
Air Supply Problems
Let's start with the air supply, which is like the lifeblood of your sandblasting machine. If the air compressor isn't supplying enough air, your blasting pressure will take a nosedive. There could be a few reasons for this. Maybe the compressor is too small for the machine you're using. A compressor that's underpowered won't be able to generate enough pressure to drive the abrasive through the blasting nozzle.
Another issue could be air leaks in the system. Leaky hoses, connectors, or valves can cause a significant drop in pressure. You might not always be able to hear these leaks, especially if they're small, but they can still have a big impact on your machine's performance.
Nozzle and Hose Issues
The nozzle and hose are key components that can also affect blasting pressure. Over time, the nozzle can wear out. A worn - out nozzle has a larger opening than the original, which means the abrasive flow is less restricted. This can lead to a decrease in pressure because the air is no longer being forced through a small, concentrated area.
As for the hose, it can get clogged with abrasive materials. If the abrasive builds up inside the hose, it restricts the flow of air and abrasive, resulting in lower blasting pressure. And if the hose is too long or too narrow for the machine, it can also cause a pressure drop due to increased friction.
Abrasive Material Problems
The type and quality of the abrasive material you're using can play a role too. Using the wrong abrasive can cause problems. For example, if the abrasive is too coarse, it can clog the nozzle and hose, reducing the flow and pressure. On the other hand, if the abrasive is too fine, it might not be heavy enough to create the necessary impact, and the pressure might seem low because the blasting isn't as effective as it should be.
Also, if the abrasive is wet or has contaminants, it can cause blockages in the system and lead to a drop in pressure.
Machine - Specific Issues
Some problems might be specific to the design of your sandblasting machine. For instance, the blast pot might have a blockage in the feed valve, which controls the flow of abrasive into the blasting stream. If this valve is blocked, the abrasive won't be fed properly, and the pressure will be affected.
The regulator on the machine might also be malfunctioning. The regulator is responsible for controlling the air pressure going into the system. If it's not working correctly, it can cause the pressure to be too low.
Troubleshooting Steps
Check the Air Supply
First things first, you need to take a good look at your air supply. Start by checking the output of your air compressor. Make sure it's running at the correct pressure and capacity. You can usually find the recommended air pressure and volume requirements for your sandblasting machine in the user manual. If the compressor is underperforming, you might need to service it or even consider upgrading to a larger model.
Next, inspect the entire air supply system for leaks. You can use a soapy water solution and apply it to the hoses, connectors, and valves. If you see bubbles forming, that's a sign of a leak. Tighten any loose connections or replace damaged parts as needed.
Examine the Nozzle and Hose
The nozzle is a critical part, so check it for wear. If it looks worn, it's probably time to replace it. You can usually tell if a nozzle is worn by measuring its opening with a caliper. If the opening is larger than the manufacturer's specifications, it's a goner.
Also, take a close look at the hose. If you suspect a clog, try to blow it out with compressed air in the opposite direction of the normal flow. If the clog persists, you might need to disassemble the hose and remove the blockage manually. And make sure the hose you're using is the right length and diameter for your machine.
Evaluate the Abrasive Material
Take a look at the abrasive material you're using. Make sure it's the right type and size for your application. If it's too coarse or too fine, switch to a more appropriate abrasive. Also, check for moisture or contaminants. If the abrasive is wet, you can dry it out before using it. If it's contaminated, discard it and use a fresh batch.
Inspect Machine - Specific Components
For the blast pot, check the feed valve for blockages. You can usually disassemble the valve and clean it to remove any abrasive build - up. Make sure it opens and closes smoothly.
If you suspect the regulator is malfunctioning, you can try adjusting it according to the manufacturer's instructions. If that doesn't work, it might need to be replaced.
Our Sandblasting Machines and Solutions

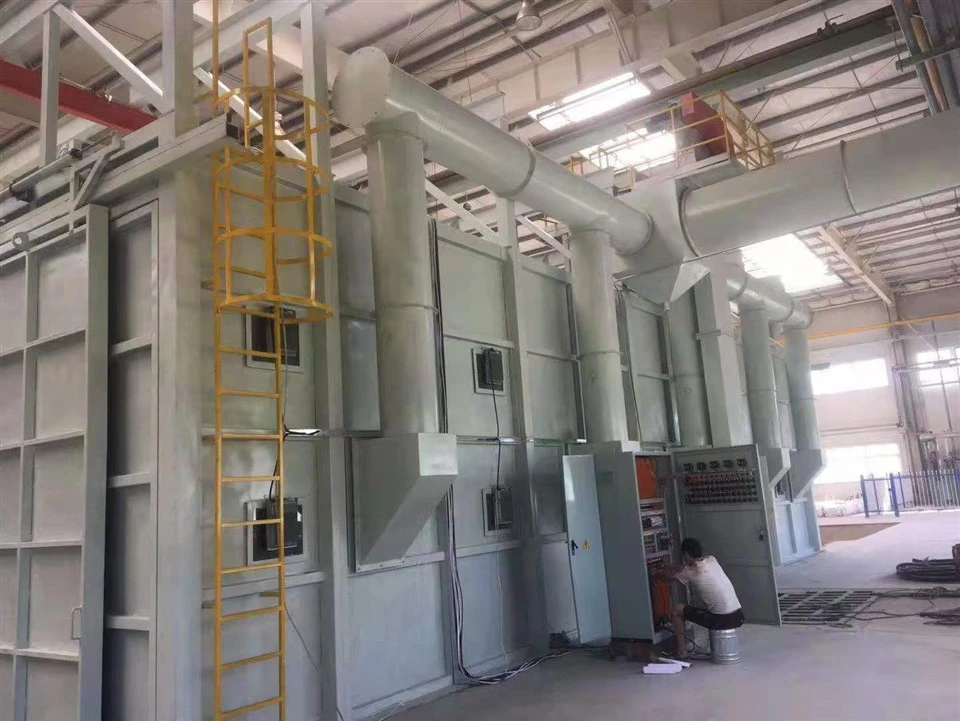

At our company, we offer a wide range of high - quality sandblasting machines, including the Shot Peening Tank, Wind Recovery Sandblasting Room, and Mechanical Recycling Sandblasting Room. These machines are designed with advanced technology to minimize the chances of low blasting pressure and other issues. But even the best machines can sometimes run into problems, and that's where our troubleshooting tips come in handy.
If you're still having trouble with low blasting pressure after trying these steps, or if you're in the market for a new sandblasting machine, don't hesitate to reach out to us. We have a team of experts who can provide you with more in - depth advice and solutions. Whether you're a small - scale workshop or a large industrial facility, we have the right machine for your needs. Contact us today to learn more about our products and start discussing your procurement options.
References
- Sandblasting Machine User Manuals
- Industry - specific guides on sandblasting equipment maintenance
